Metering Pumps And Spinfinish Application Systems for Textiles

ACCU-OIL “Pulseless Model”                              Typical Apps.
                                                                                             Contact Info.

The Pulseless Model Is used in critical applications such as very high speed winding operations.
                               TYPICAL OPERATING CONDITIONS
Capacity
CC/Rev
Per Stream*		 Streams
Per Pump
Up To		 Speed
RPM		 Capacity Per
Stream Per
Minute		 Pressure
Differential
Feet		 Temp
C°		 Maximum Pressure
Capability Individual
Stream at 60 R.P.M. P.S.I.
0.015 18 40 - 80 0.6 -1.2 0 - 25 15 - 50 50+
0.025 18 40 - 80 1.0 - 2.0 0 - 25 15 - 50 50+
0.05 18 40 - 80 2.0 - 4.0 0 - 25 15 - 50 50+
0.10 18 40 - 80 4.0 - 8.0 0 - 25 15 - 50 50+
0.15 18 40 - 80 6.0 - 12.0 0 - 25 15 - 50 50+
0.30 18 40 - 80 12.0 - 24.0 0 - 25 15 - 50 50+
0.6 12 40 - 80 24.0 - 48.0 0 - 25 15 - 50 50+
1.0 12 40 - 80 40 - 80 0 - 25 15 - 75 50+

1.6

12

40 - 80

64 - 128

0 - 25

15 - 75

50+





Typical Apps.













Contact Info.

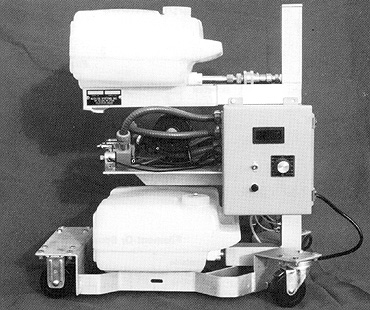

Model D0315R
Anti-stat Application System for Filament Fiberglass. Delivers a metered stream of anti-stat to each of 2 to 4 winders in continuous operation. The unit is automated to switch each individual stream to recycle when the threadline breaks or when the winder stops.

Capacity: 1 MI. to 12 MI / Minute Per Stream.
Accuracy: Plus or Minus 2% of Target.

ACCU-OIL Metering Pumps:

  • Have up to 36 individual streams per pump.
  • Have a delivery from stream to stream which is accurate within + 2% of target or less.
  • Have the capability to develop pressures up to 60 P.S.I. depending on the metering tube being used. However, the pumps are not recommended for continuous operation at such high pressures.
  • Are suited for metering shear sensitive chemicals.
  • Are compatible with most spinfinish emulsions, solutions or plain water.
  • Are available in corrosion resistant models.
  • Work by peristaltic action so that the liquid, which is being pumped, does not come in contact with the metal components of the pump.
  • Have a patented design, which delivers a smoother, more consistent flow to each of the multiple streams.
